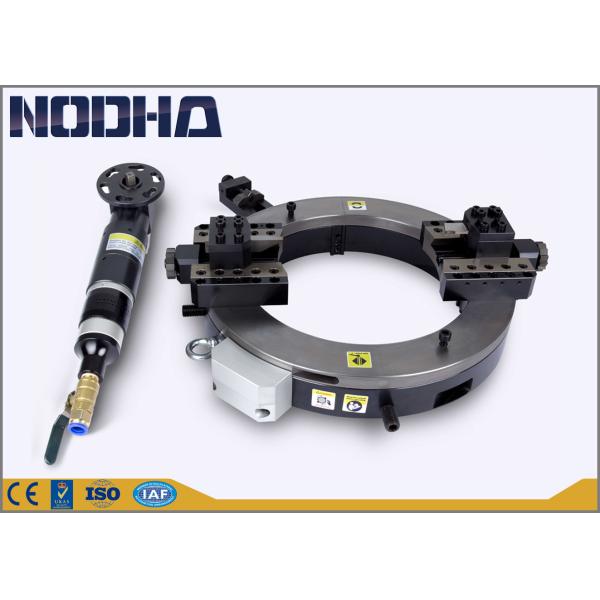

Air-operated Cold Pipe Cutting And Bevelling Machine Steel Material

Pipe Cutting and beveling Machine:

The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 2” to 48” O.D.(DN50-1200), on most wall thicknesses and material.

• Oil & Gas File
• Power Plant
• Chemical Plant
• Nuclear Power Plant
• Process Plant & Fabrication
• Ship Building & Repair

• Cold Cutting and Beveling improve safety
• Split Frame
• Cut or Cut/Bevel simultaneous
• Low Axial & Radial Clearance
• Tool feed automatically
• Easy install & Operation
• Pneumatic, Electric and Hydraulic type for option
• Machining OD of pipe from 2” up to 48”

• Drive Options: Pneumatic, Hydraulic, and Electric
• Air requirement: 1500L-3000L/Min@0.6/0.7Mpa
• Hydraulic requirement: 2-60L/Min@12.5Mpa
• Electric requirement: 220-240V 1PH 50/60HZ
• Feed mode: Star wheel, automatically
• Feed rate: Fixed@0.08mm per circle
• Packaging: Plywood case

Suggest: size 1066 and above size select and use hydraulic type

Before you place order to us, please let us know the following information:

• Choose suitable Model

• Confirm electric power supply ( Voltage, frequency and phase)

• Confirm the beveling angel needed

• Confirm the welding joint required (U, V, Double V or Compound preparation)

• Advise your pipe material ( Carbon steel, stainless steel or others)

• Other special demands about machine

• The spare parts required

• If the pipe wall thickness more than 30mm, inform us in advance (Important)

Working On Site

Exhibition

Certification

​

After-sale Service

1. ​Warranty period: 12 months
2. Emergency spare parts required dispatched within 24 hours
